BTTZ 750V 1x35mm2 Mineral Insulated Power Cable Bare Copper Conductor

Brand Name : OEM

Certification : ISO9001/ISO14001/OHSAS18001/CCC/CE

Place of Origin : China

MOQ : 10000M

Price : Negotiation

Payment Terms : T/T, L/C, D/P, West Union, Paypal, Secure Payments

Supply Ability : 1000M/Day

Delivery Time : 15-20 working days or Negotiation

Packaging Details : Standard export package

Application : Construction,Industrial,Underground,Power Station,BUILDING

Type : Mineral insulated

Conductor : Bare Copper

Voltage : 0.6/1kV

Insulation : mineral material

Sheath : Copper

color : orange

Core : 1C, 2C, 3C, 4C,

Contact Now

1x35mm2 BTTZ 750V Mineral Insulated Copper Sheath High Temperature Cable , Heat Resistant Flexible Cable

Production Description:

APPLICATION

Mineral Insulated Cables offer a lifetime, ageless and fireproof electric cable solution that are used to protect essential life critical circuits in:

• High Rise Buildings

• Tunnels

• Airports

• Towers

• Mass Rapid Transit Systems

Conductors	Solid plain copper conductors
Insulation	Magnesium Oxide
Outer sheath	Plain copper sheath with optional LSZH covering

Electrical Characteristics at 20℃

Nominal Conductor Diameter	mm	1.39	1.77	2.25	2.75	3.57	4.5	5.66	6.66	7.75
Nominal Conductor Cross Section	mm^2	1.5	2.5	4.0	6.0	10.0	16.0	25.0	35.0	50.0
Maximum DC Conductor Resistance	Ω/km	12.1	7.41	4.64	3.08	1.83	1.15	0.727	0.524	0.387
Voltage Rating	KV	0.75

Nominal Conductor Diameter	mm	9.32	10.98	12.33	13.7	15.18	17.33	19.37	22.37
Nominal Conductor Cross Section	mm^2	70.0	95.0	120.0	150.0	185.0	240.0	300.0	400.0
Maximum DC Conductor Resistance	Ω/km	0.268	0.193	0.153	0.124	0.101	0.0775	0.0601	0.047
Voltage Rating	KV	0.75

Mechanical and Thermal Properties

Minimum Bending Radius: 2×OD (D<7); 3×OD (7 ≤ D<12); 4×OD (12 ≤ D<15); 6×OD (D ≥ 15)

6. Tabular data

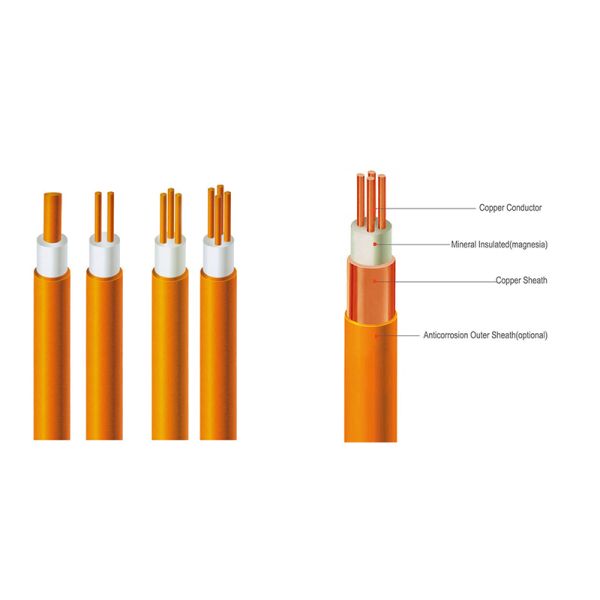

Construction

	1. Conductor material:	Bare Copper
	2. Outer Sheath	copper
	3.Insulation Material	mineral
